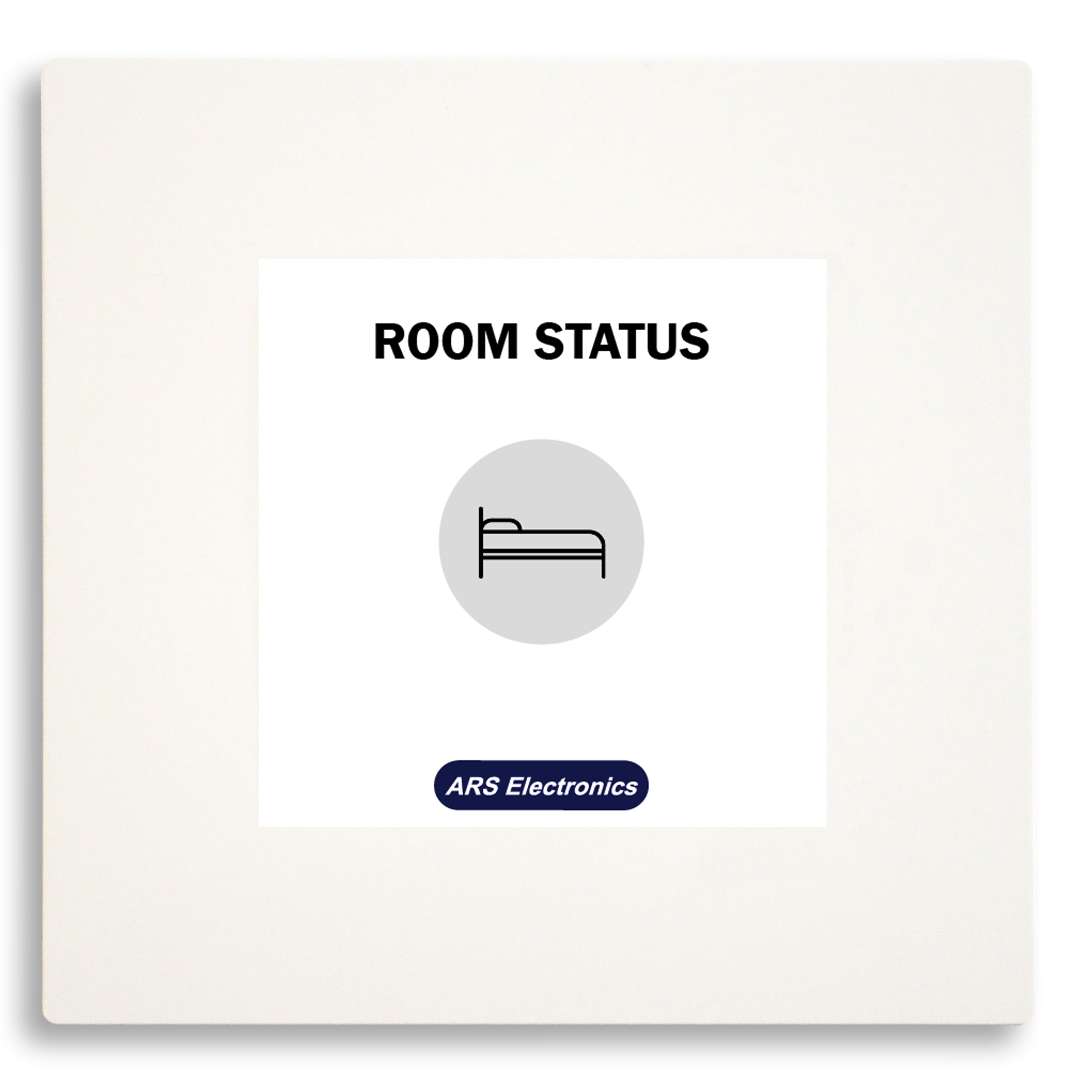

Room status signaling module

Room status signaling module

Ref.

CS10-RD01

LED system status - White/System OK
LED call status - Blue/Doctor call, Red/Nurse call, Yellow/Assistance call

Product Image Downloads

Specifications

Specifications

Service voltage

12 Vdc

Power consumption

0.25W @ 12V

CPU

8 MHz

CAN Bus 2 – Zone bus

Yes

Width

45 mm

Height

45 mm

Depth

30 mm

Material (modular piece)

ABS V0

Material (faceplate)

2mm Tempered Glass

IP degree

IP20

Number of terminals

8

Terminal type

Plug-in

Wire dimension

24 AWG a 12 AWG
